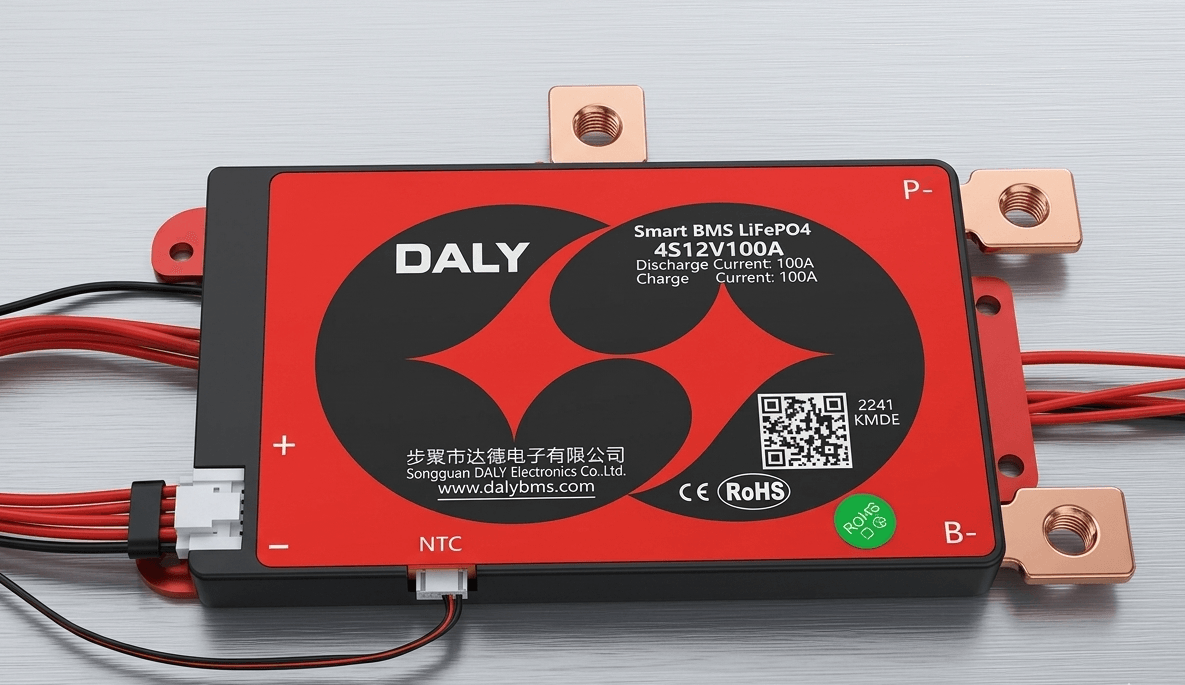

DALY Smart BMS 4S 12V 100A (LiFePO4) – Premium Battery Protection Board

The DALY 4S 12V 100A Battery Management System (BMS) is an industrial-grade, hardware-level protection circuit engineered to maximize the safety, conversion efficiency, and operational lifespan of 12V Lithium Iron Phosphate (LiFePO4) battery packs. By continuously monitoring critical cell-level parameters, this system prevents devastating electrical failures, making it the premier choice for custom battery pack assembly, solar storage reservoirs, electric mobility, and DIY power installations.

• Patented Environmental Armoring: Utilizing a specialized plastic injection molding process, the board is completely sealed to deliver verified IP65 waterproof, dustproof, and shockproof defenses capable of surviving severe workshop or outdoor deployment conditions.

• Low Resistance & Thermal Efficiency: Features an advanced wave-type aluminum heatsink plate combined with high-voltage resistance power MOSFETs to efficiently dissipate heat during sustained continuous power throughput.

1. Technical Specifications & Operating Thresholds

2. Five-Layer Smart Hardware Safety Infrastructure

The DALY system uses high-precision acquisition chips and Japanese Seiko integrated control circuits (ICs) to isolate faults within 250 to 500 microseconds:

• Cell Equalization (Passive Balancing): Automatically distributes energy across all four series cells once balancing thresholds are reached, eliminating capacity mismatches and extending individual cell lifespan.

• Over-Charge & Over-Discharge Isolation: Instantly cuts the power path if a cell exceeds or drops below safe structural voltage boundaries, avoiding permanent chemical breakdown.

• Over-Current & Short-Circuit Suppression: Leverages dedicated high-current copper routing to manage heavy load surges while safeguarding the battery cells against sudden ground shorts.

• NTC Thermal Sensor Interlock: Includes an integrated external negative temperature coefficient probe that halts system loops during dangerous overheating or under-temperature operations.

3. Versatile Power Applications

• Custom Lithium Battery Pack Assemblies: An essential component for battery pack manufacturers building certified 12V LFP banks.

• Electric Mobility: Safely manages power demands for low-speed electric mobility projects, including specialized electric scooters, utility carts, and e-bikes.

• Off-Grid Solar Energy Reservoirs: Seamlessly regulates energy input from solar charge controllers and output channels into high-wattage standalone power banks.

• Standby UPS & DIY Projects: Excellent core protection for high-drain home inverter backups, marine leisure systems, RV power lines, and custom DIY setups.

4. Crucial Workshop Installation Safety Best Practices

⚠️ Critical Wiring Sequence Safeguard

To prevent permanent internal damage to the BMS circuitry, operators must follow these exact implementation protocols:

1. Never plug the balance sampling cable into the BMS board first. > 2. Always solder/weld all balance wires directly to the battery cell terminals starting cleanly from the total negative (B-) up to the final positive (B+).

2. Verify the voltage increments across each wire channel using a multimeter.

3. Only after ensuring the wiring layout is solid and completely free of virtual welding should you plug the connector harness securely into the DALY board socket.

5. Commercial Warranty & Sourcing Parameters

For rapid technical assistance, engineering schematic confirmations, or to book one of the remaining four units in stock, please reach out to the EV Nexo Mart technical fulfillment desk via WhatsApp, email, or our dedicated commercial ordering lines.
