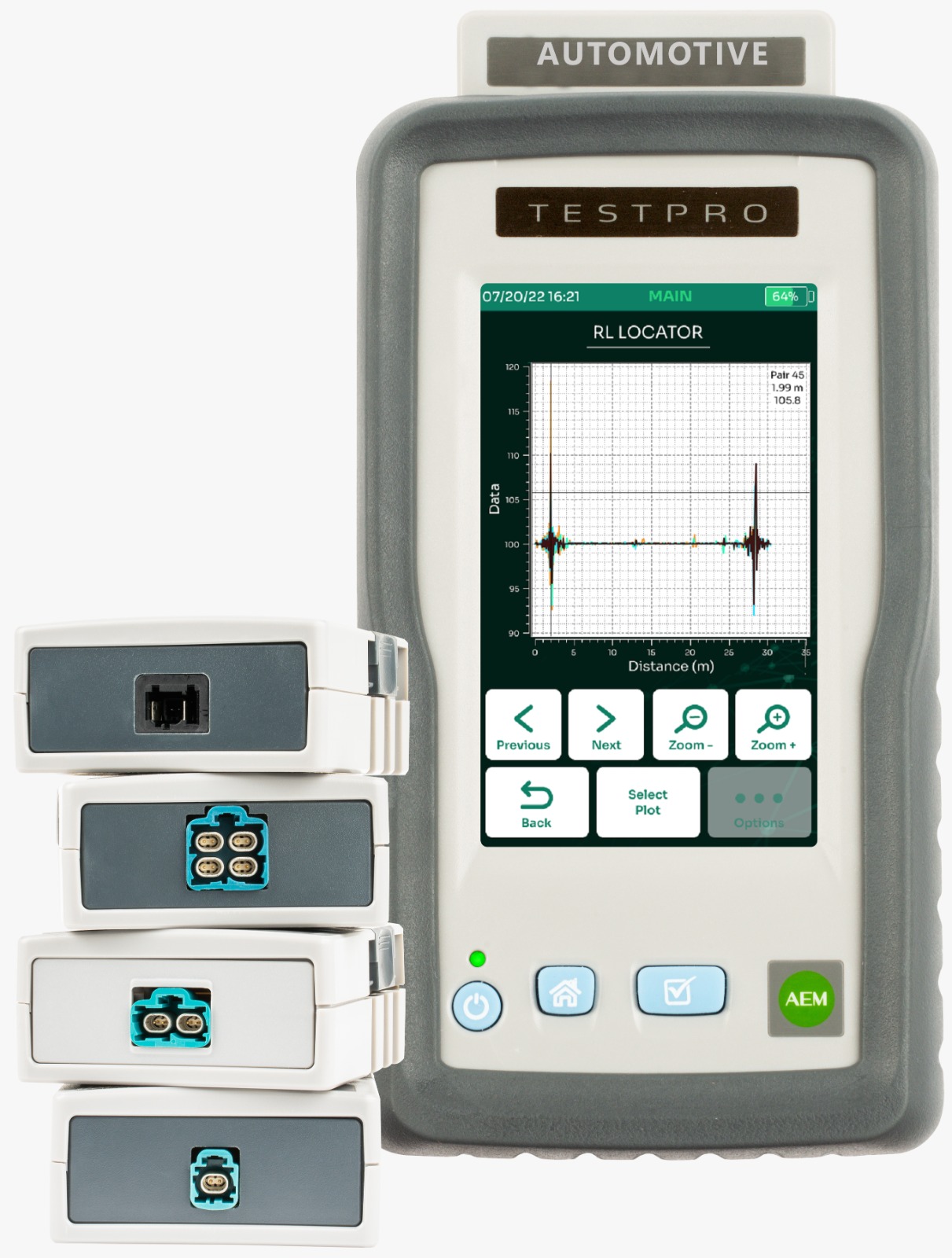

AEM TestPro- Automotive In-Vehicle Test System

AEM TestPro: Enterprise-Grade In-Vehicle Automotive Test & High-Speed Network Validation System

Engineered for High-Performance Mobility | Distributed & Supported Globally by EV Nexo Mart

Modern electric vehicles are no longer simple mechanical chassis units—they are high-speed, data-driven digital networks on wheels. EV Nexo Mart, alongside the engineering and distribution infrastructure of Huezone Solutions, introduces the AEM TestPro Automotive In-Vehicle Test System. This industrial-grade testing platform is explicitly designed to handle the complex, low-latency electronic nervous systems inside modern electric 2-wheelers, 3-wheelers, and custom multi-brand fleets.

Operating as an all-in-one handheld or workstation validation hub, the AEM TestPro allows engineers and factory technicians to test the integrity of complete automotive wiring harnesses, isolated Electronic Control Units (ECUs), and high-voltage battery management communication lines directly while fully installed inside the vehicle. By introducing rapid, one-click automated scripting, it completely eliminates the financial and logistical overhead of deploying delicate laboratory vector network analyzers (VNAs) or external laptops onto a rugged production floor.

Key Capabilities & The Engineering Edge

1. In-Vehicle Harness & Protocol Certification

High-speed data pathways, Single-Pair Ethernet (SPE), and internal CAN networks require perfect physical link continuity to maintain vehicle safety boundaries. The AEM TestPro provides direct, physical testing that fully conforms to global OPEN Alliance and BroadR-Reach® standards. Technicians can instantly verify that the vehicle’s communication backbones meet precise industrial tolerances, capturing hidden network reflections or signal cross-talk issues before final product sign-off.

2. Advanced Distance-to-Fault (DTF) Target Mapping

Finding an electrical anomaly inside a fully assembled vehicle harness can trap a technician in hours of manual teardown work. The AEM TestPro utilizes precision wave profiling to calculate and display the exact Distance-to-Fault along the harness. It maps the location of micro-kinks, pinched wires, bad crimps, or short circuits down to the centimeter, enabling immediate workshop remediation without dismantling the frame.

3. Simultaneous DC & Full RF S-Parameter Analysis

Unlike simple continuity testers that only check baseline voltages, this platform runs a dual-layer test engine. In a single automated test window lasting only seconds, it measures standard line resistance alongside advanced RF S-parameters (Return Loss, Insertion Loss, and Impedance profiles). This ensures the electrical distribution architecture is structurally sound and completely immune to the electromagnetic interference (EMI) typical of high-current EV drivetrains.

4. Cloud-Enabled Enterprise Yield Lifecycle Tracking

Equipped out-of-the-box with the TestDataPro Cloud platform, the testing architecture bridges the gap between factory floor operators and remote engineering laboratories. All diagnostic logs, passing profiles, and fault data are automatically stored in secure, tamper-resistant formats. R&D managers can remotely review assembly-line data trends from geographically separate facilities, enabling predictive tracking of component suppliers and preventing batch defects early.

How It Works: The 4-Step Production Workflow

The interface is optimized for high-volume environments, requiring zero specialized lab certifications for floor technicians.

1. Interface: Connect the rugged AEM TestPro interface inline to the target automotive harness or diagnostic port using hot-swappable test adapters.

2. Execute: Initiate the One-Click Autotest script directly from the hardened device interface.

3. Isolate: The system analyzes high-frequency RF and DC parameters simultaneously, instantly rendering an absolute "Pass/Fail" indicator alongside exact fault locations if anomalies are found.

4. Synchronize: The collected dataset is safely backed up to the enterprise network database via TestDataPro, generating an automated validation audit report for quality control.

PART 3: Professional Configuration & Deployment Matrix

To seamlessly align with diverse factory, engineering, and maintenance facility layouts, the AEM TestPro framework is systematically structured into four distinct physical envelopes:

1. Portable Handheld System: A highly ruggedized, lightweight, shock-protected field unit tailored for rapid EV workshop diagnostics, roadside assistance triage, and on-site commercial fleet asset evaluations.

2. Monitor-Based Workstation: A full-scale desktop tower infrastructure configured with multi-screen visualization dashboards, built specifically for advanced EV R&D laboratories and high-level electronics validation centers.

3. Industrial Production Line: An automated, heavy-duty structural testing frame optimized for rapid, high-frequency continuous cycling as a definitive end-of-line quality checkpoint during final factory vehicle assembly.

4. Custom OEM Configuration: Specialized modular hardware configurations engineered to match brand-exclusive vehicle blueprints, custom low-voltage paths, and proprietary manufacturer electronic topologies.

PART 4: Unified Warranty & Enterprise Support Architecture

The AEM TestPro Automotive In-Vehicle Test System features a robust enterprise-tier protection framework co-backed by the distribution network of EV Nexo Mart and the technology execution desk at Huezone Solutions.

1. Extended Hardware Protection Plan

• Standard Factory Protection: Every AEM TestPro mainframe unit is backed by an extensive manufacturer warranty covering core structural electronics and component defects.

• 5-Year Extended Lifespan Platform Shield: Upon official product registration through the EV Nexo Mart enterprise portal, the core testing computing platform is automatically upgraded to an extended 5-Year Long-Term Warranty Plan ensuring high-level operational security for your facility asset.

• Modular Adapter Coverage: Removable hot-swappable test interfaces, testing adapters, and accessory components include a standard 1-Year Warranty Plan against component failure.

2. Specialized Operational Support & Consultation

• Tailored Component Engineering: The EV Nexo Mart client engineering office, backed by Huezone's 200+ man-years of technical expertise, provides complete B2B consultation to match the exact modular testing adapters, custom wire harnesses, and pin specifications to your specific EV product lines.

• Integration & Workspace Setup Guidance: Full technical support to safely bridge the TestDataPro network software and terminal hardware tools directly into your active facility layouts, assembly tracking databases, or engineering benches.

• Streamlined Enterprise Procurement: Custom volume pricing matrices, formal corporate quotes, and milestone-based acquisition frameworks are fully supported for industrial purchasing departments, manufacturing plant managers, and nationwide garage networks.

⚠️ Standard Enterprise Limitation Note: The baseline structural warranty explicitly protects against factory manufacturing and internal hardware defects. For operations seeking protection against unforeseen industrial accidents, specialized Extended Care Programs are available to cover high-impact shop drop damage, shattered display arrays, or direct fluid exposure liabilities on the factory floor.

1. Corporate Identity & Domain Positioning

The Technology Engineering Matrix: Huezone Solutions

Born in Singapore and expanding globally, Huezone Solutions operates as a premier deep-tech enterprise specializing in cutting-edge test and measurement, cybersecurity, automation, and advanced electrical architectures. Armed with over 120+ man-years of intensive business and technical sales consulting expertise across the Asia-Pacific region, Huezone provides the foundational technical infrastructure that anchors modern industrial manufacturing.

The company functions as the definitive technology implementation bridge for the automotive, telecommunications, and aerospace industries. By building specialized diagnostic hardware, custom multi-pair wiring harness verification models, and automotive embedded system networks, Huezone Solutions sets the structural quality benchmarks required for highly advanced electric mobility platforms.

The Commercial Deployment Network: EV Nexo Mart

Operating as a premier B2B commercial enterprise marketplace and procurement platform, EV Nexo Mart acts as the strategic gateway for on-ground industrial implementation. EV Nexo Mart specializes in equipping automotive factories, R&D engineering facilities, independent service garages, and high-duty commercial vehicle fleets with next-generation diagnostic ecosystems.

By translating raw laboratory diagnostic physics into highly practical, floor-ready tools, EV Nexo Mart manages the entire supply chain footprint. They handle technical product guidance, localized customer support, B2B procurement agreements, and customized field implementations to shield commercial buyers from technical operational friction.

2. Shared Ecosystem Responsibility & Delivery Split

Core Technology, Hardware R&D, and Compliance Calibration

• Huezone Solutions Domain: Manages the baseline electronic hardware architecture, high-frequency processing engines, and deep-level firmware configurations. They guarantee that all diagnostic platforms strictly conform to rigorous global network safety guidelines and precise physical signal measurement tolerances.

• EV Nexo Mart Domain: Directs the user-facing deployment by matching Huezone's compliant testing setups to the specific vehicle lineups, workshop environments, or commercial fleet demands of the regional buyer.

B2B Procurement and Supply Chain Realization

• Huezone Solutions Domain: Issues formal factory performance certifications, coordinates specialized lab validations, and manages deep structural firmware updates.

• EV Nexo Mart Domain: Provides unified commercial infrastructure, volume procurement frameworks, customized corporate pricing schedules, and localized logistical fulfillment tailored for purchasing agents and facility managers.

Physical Integration and Workspace Commissioning

• Huezone Solutions Domain: Designs and tests specialized multi-pin interfaces, swappable high-frequency diagnostic adapters, and proprietary testing wiring harnesses.

• EV Nexo Mart Domain: Oversees the direct installation of equipment onto the factory floor, conducts live technician onboarding programs, and guides the integration of testing hardware with local network infrastructure.

Analytical Frameworks and Database Synchronization

• Huezone Solutions Domain: Engineers and optimizes the underlying desktop software clients and cloud-based network storage structures to handle heavy testing log databases securely.

• EV Nexo Mart Domain: Connects the diagnostic logging outputs seamlessly into the facility's existing end-of-line quality assurance workflow, performance monitoring metrics, or vehicle tracing protocols.

3. Integrated Warranty & Factory Escalation Architecture

Investing in these joint technological systems provides industrial operations with a dual-tiered, integrated protection plan that connects local field support with advanced manufacturing labs:

Tier 1: Front-Line Operational Triage (EV Nexo Mart Support Desk)

All immediate, day-to-day operational queries are managed directly by the front-line service network at EV Nexo Mart. If a manufacturing floor assistant or shop technician requires immediate help setting up an autotest configuration script, managing local dashboard inputs, or mapping output data, EV Nexo Mart resolves the block immediately to secure maximum workshop uptime.

Tier 2: Deep Hardware & Platform Defense (Huezone Factory Engineering Desk)

For the long-term protection of your facility assets, the physical core computing and hardware testing mainframes are reinforced by extensive factory-backed warranty structures:

• Core Mainframe Shield: Registration of the diagnostic asset through the EV Nexo Mart enterprise network automatically secures an extended long-term manufacturer warranty on the primary computational mainframe.

• Modular Adapter Shield: Removable high-frequency interfaces, modular multi-pin connection adapters, and secondary test cable sets carry a comprehensive standard warranty against factory material or engineering component flaws.

• Industrial Protection Add-Ons: For high-volume, harsh industrial workshop settings, facilities can acquire specialized Extended Care Programs via EV Nexo Mart. These premium packages provide comprehensive operational coverage against accidental factory floor drop impacts, shattered digital terminal displays, or direct liquid exposure hazards.

1. The Timeline and Asset Duration Breakdown

To ensure absolute clarity for industrial purchasing departments, the warranty terms are split by asset type and duration:

• Core Computing Mainframe Platform — 5-Year Extended Warranty: The primary computational mainframe test units are backed by an extensive 5-Year Extended Manufacturer Platform Warranty. This long-term coverage takes effect automatically upon formal registration of the device serial number through the EV Nexo Mart enterprise network, safeguarding the core RF and electronic measurement engine.

• Removable Testing Adapters & Modules — 1-Year Standard Warranty: Because hot-swappable components experience physical handling, all modular testing interfaces, multi-pin test adapters, and secondary harness test leads include a standard 1-Year Warranty Plan protecting against internal material component failures or factory defects.

• EV Nexo Mart Marketplace Shield — First 6 Months: For immediate, out-of-the-box protection, the local marketplace distributor provides a dedicated 6-Month Operational Window. If any factory hardware defect or component malfunction is identified during this timeframe, EV Nexo Mart handles the rapid physical unit swap-out directly to eliminate shop floor latency.

2. The Dual-Layered Warranty Execution Framework

Layer A: The EV Nexo Mart Marketplace Shield (Immediate Front-Line Protection)

To maximize production line uptime and shield B2B buyers from operational friction, EV Nexo Mart handles all direct client-facing service parameters during the initial onboarding window:

• Immediate Local Replacement: If a unit demonstrates a factory defect within the first 6 months, EV Nexo Mart manages local unit swap-out protocols to ensure your facility's assembly or testing operations experience zero downtime.

• Onsite Software and Technical Onboarding: The EV Nexo Mart client engineering office provides zero-cost setup calibrations, localized database script alignments, and real-time technician troubleshooting support during this operational phase.

Layer B: The Huezone Solutions Factory Shield (Long-Term Hardware Defense)

Anchoring the physical testing technology, Huezone Solutions manages deep architectural stability, advanced diagnostics, and compliance engineering over the full contract lifetime (1 year for modular components, 5 years for mainframes):

• Core Structural Protection: Huezone Solutions secures the testing infrastructure against long-term internal hardware failure, manufacturing assembly flaws, and component errors.

• Network Compliance Recalibration: Huezone ensures that all repaired hardware continues to meet international automotive high-speed network testing standards, such as OPEN Alliance and BroadR-Reach®.

3. Shared Warranty Delivery & Support Breakdown

• Initial Verification Desk: EV Nexo Mart serves as the single point of contact for all warranty claims. Their team executes front-line triage to determine if an issue can be resolved via local settings or if it requires coordination with Huezone's advanced laboratory desk.

• Firmware and Cloud Synchronization: EV Nexo Mart assists with localized database script deployment and on-ground app layouts. Huezone Solutions designs and pushes deep firmware optimization patches, automated script updates, and secure network upgrades for the TestDataPro Cloud ecosystem.

• Procurement Support Integration: EV Nexo Mart manages corporate milestone warranties, bulk corporate replacement cycles, and customized pricing structures. Huezone Solutions issues official factory calibration tracking charts and formal compliance validation paperwork.

4. Policy Exclusions & Operational Boundaries

The protective framework across both EV Nexo Mart and Huezone Solutions focuses strictly on factory material, manufacturing assembly defects, and internal engineering anomalies under regular day-to-day industrial operations. The baseline warranty framework explicitly excludes coverage for:

• Physical crash, drop, or crush damage caused by heavy shop-floor impact.

• Shattered digital terminal display panels or warped casing structures.

• Unauthorized custom system wiring modifications or external multi-pin wire splicing.

• High-surge external power overloading or facility electrical spikes.

• Liquid or water ingress negligence occurring outside targeted environmental specifications.

• Natural exterior cosmetic wear patterns and surface scratches developed over normal workspace usage.

5. Industrial Extended Care Programs

For harsh, high-volume manufacturing environments where physical tools face heavy daily fatigue, facilities can choose to acquire premium Extended Care Programs through EV Nexo Mart at the time of purchase.

These premium support contracts upgrade the baseline warranty to cover accidental plant accidents. They provide low-cost structural screen and display refresh programs, rapid unit loan replacements during service cycles, and scheduled annual lab recalibrations managed directly by the engineers at Huezone Solutions.
